Description
Key Features & Benefits

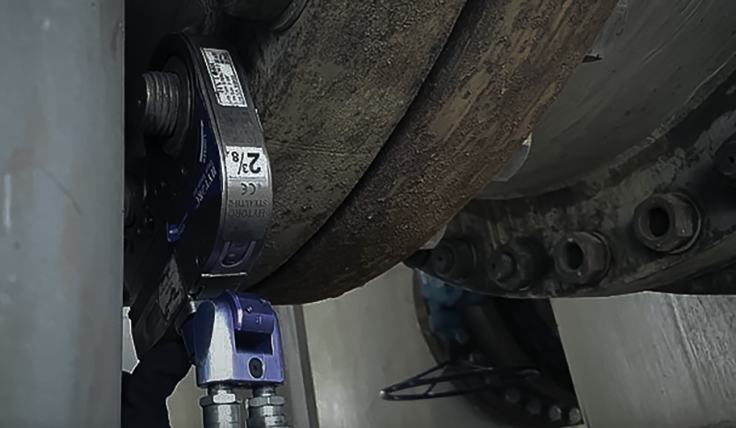

Low-Clearance Design
The ultra-slim body allows the wrench to fit into tight and restricted spaces where standard hydraulic torque tools are unable to operate. This makes the STEALTH the perfect solution for compact flange connections, valves, and structural bolting applications.
360° × 180° Uniswivel
The advanced Uniswivel connection provides complete hose flexibility, allowing operators to position hydraulic hoses safely and conveniently without compromising tool performance.

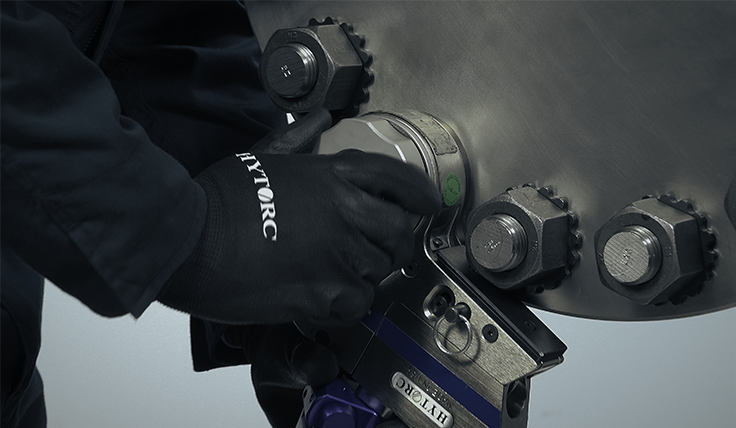

Hands-Free Operation
For improved safety and productivity, the optional tool retainer securely holds the wrench in place during operation, reducing operator fatigue and minimizing hand exposure near the bolting area.
Integrated Reaction-Free Links
Built-in reaction-free link technology eliminates kickback and unwanted tool movement, ensuring smoother torque application and safer operation.

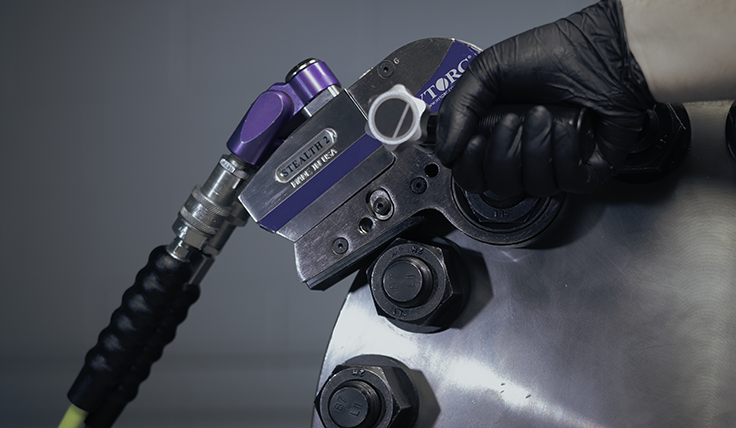

ATEX-Certified Option Available
The STEALTH can be configured for use in potentially explosive environments, making it suitable for hazardous industrial locations where ATEX compliance is required.
Quick Couplers
Fast and secure hydraulic connections simplify setup and operation, reducing downtime and increasing overall job-site efficiency.
Highly Repeatable Torque Output
Engineered for precision, the STEALTH delivers consistent torque results from bolt to bolt, helping maintain critical joint integrity and compliance with tightening specifications.
Subsea Capable
Designed to perform reliably in demanding underwater environments, the STEALTH is an excellent choice for offshore and subsea bolting operations.
6-Point & 12-Point Links
Available in a wide range of popular sizes, providing flexibility for various bolting requirements and applications.
Torque & Angle Capability
Supports both torque-controlled and angle-controlled tightening procedures for enhanced bolting accuracy.
Multiple Reaction Fixtures
A variety of reaction options are available, allowing the tool to adapt to different application requirements and working environments.
Robotic Integration Ready
Compatible with automated and robotic bolting systems, supporting modern industrial maintenance and manufacturing processes.
Applications
The STEALTH Hydraulic Torque Wrench is commonly used for:
- Flange bolt tightening
- Pressure vessel assembly
- Heat exchanger maintenance
- Wind turbine bolting
- Offshore platform maintenance
- Subsea equipment installation
- Petrochemical plant shutdowns
- Power generation facilities
- Mining equipment maintenance
- Heavy industrial construction
Why Choose the STEALTH Hydraulic Torque Wrench?
The STEALTH series is specifically designed for professionals who require precise torque application in confined spaces. Its low-clearance profile, reaction-free operation, hands-free functionality, and compatibility with advanced automation systems make it one of the most versatile hydraulic torque wrenches available today.
Whether you are performing routine maintenance, executing critical shutdown projects, or operating in challenging offshore and subsea environments, the STEALTH Hydraulic Torque Wrench delivers the performance, safety, and reliability required for successful bolting operations.
STEALTH Hydraulic Torque Wrench Models & Torque Ranges
To accommodate a wide range of industrial bolting applications, the STEALTH Hydraulic Torque Wrench is available in multiple sizes with torque capacities ranging from 377 Nm to 47,069 Nm.
Metric Specifications
Model Hex Size Range (mm) Weight (kg) Torque Range (Nm) STEALTH 2 28 – 60 2 377 – 2,534 STEALTH 4 36 – 80 2 819 – 5,450 STEALTH 8 50 – 100 3 1,625 – 10,823 STEALTH 14 70 – 120 5 2,854 – 19,324 STEALTH 22 75 – 130 7 4,406 – 29,654 STEALTH 36 90 – 165 11 6,665 – 47,069 Imperial Specifications
Model Hex Size Range (in) Weight (lbs) Torque Range (ft-lbs) STEALTH 2 1 1/8″ – 2 3/8″ 3.99 278 – 1,869 STEALTH 4 1 7/16″ – 3 1/8″ 4.30 604 – 4,020 STEALTH 8 2″ – 3 7/8″ 6.70 1,199 – 7,984 STEALTH 14 2 3/4″ – 4 5/8″ 10.40 2,105 – 14,255 STEALTH 22 2 15/16″ – 5″ 15.40 3,250 – 21,875 STEALTH 36 3 1/2″ – 6 1/2″ 24.10 4,917 – 34,722 Technical Performance
The STEALTH Hydraulic Torque Wrench series covers a broad spectrum of bolting requirements, from medium-duty maintenance applications to heavy industrial and offshore projects. With torque capacities reaching 47,069 Nm (34,722 ft-lbs), the range is suitable for:
- Pipeline flange bolting
- Wind turbine assembly and maintenance
- Oil & gas installations
- Petrochemical plants
- Offshore and subsea operations
- Mining equipment maintenance
- Power generation facilities
- Heavy structural bolting
- Industrial shutdown and turnaround projects
The combination of a compact low-clearance design, high torque output, and lightweight construction allows technicians to work efficiently in confined spaces without sacrificing performance or safety. The STEALTH range delivers exceptional torque accuracy and repeatability, ensuring consistent bolt load across critical joints and assemblies.
